High-Low Pumps

High-Low Pump, Group 2G/2G (3~30cm³/rev.)

High-Low Pump, Group 2G/2G
Technical Information
  • Displacement: 3~30cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S)
  • Min. speed: 800r/min
  • Max. speed: 2500r/min
  • Peak pressure: 250bar
Request a Quote
High-Low Pump, Group 2G/2G Technical Parameter
Displacement Displacement Overflow pressure Max. continuous pressure Max. intermittent pressure Max. peak pressure Min. speed Max. speed Volumetric efficiency
Y V P P1 P2 P3 nmin nmax ηv
cm³/rev. cm³/rev. bar t/min %
3 16 35...75 210 230 250 800 2500 ≥90
3 18
4 18
4 20
6 20
6 22
8 20
8 22
10 22
10 25
12 25
12 28
14 28
14 30

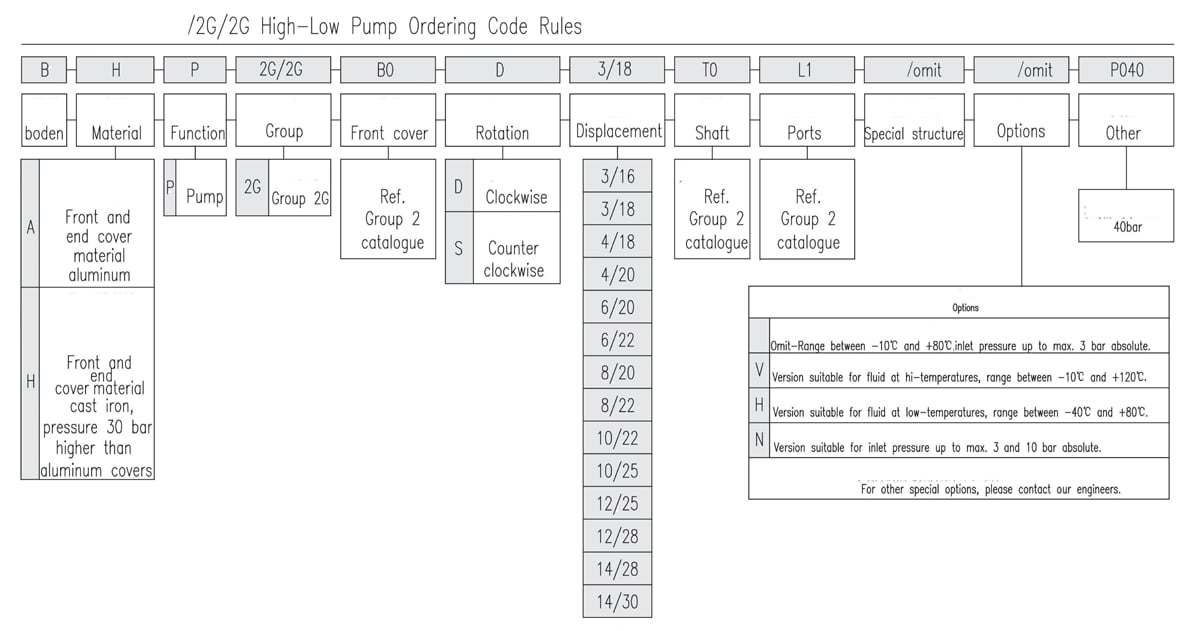

2G/2G High-Low Pump Ordering Code Rules
PDF download
2G/2G High-Low Pump Ordering Code Rules

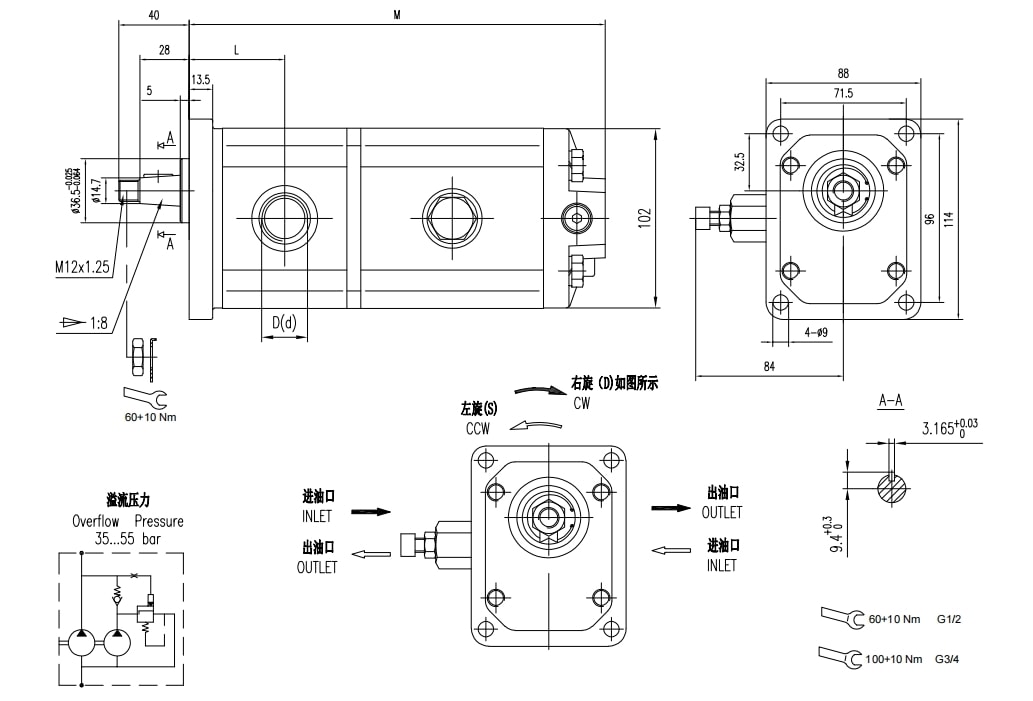

2G/2G High-Low Pump Standard Product Dimensions
High-Low Pump, Group 2G/2G
High-Low Pump, Group 2G/2G
Inquiry
Displacement Max. pressure Max. continuous pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet
High Low P1 P2 P3 P L M D d
(cm³/rev.) (cm³/rev.) bar bar bar bar (r/min) (r/min) mm mm
3 16 210 230 250 3500 1000 43.6 181.8 L1 G3/4 G1/2
3 18 210 230 250 3500 1000 43.6 185.1 L1 G3/4 G1/2
4 18 210 230 250 3500 1000 44.4 186.7 L1 G3/4 G1/2
4 20 210 230 250 3500 1000 44.4 190 L1 G3/4 G1/2
6 20 210 230 250 3500 1000 46 193.3 L1 G3/4 G1/2
6 22 210 230 250 3500 1000 46 196.6 L1 G3/4 G1/2
8 20 210 230 250 35..75 3500 1000 47.7 196.6 L1 G3/4 G1/2
8 22 210 230 250 3500 1000 47.7 199.9 L1 G3/4 G1/2
10 22 210 230 250 3500 1000 49.3 203.2 L1 G3/4 G1/2
10 25 210 230 250 3500 1000 49.3 208.2 L1 G3/4 G1/2
12 25 210 230 250 3500 1000 51 211.5 L1 G3/4 G1/2
12 28 210 230 250 3500 1000 51 216.5 L1 G3/4 G1/2
14 28 210 230 250 3500 1000 52.7 219.9 L1 G3/4 G1/2
14 30 210 230 250 3500 1000 52.7 223.2 L1 G3/4 G1/2
