Multiple Gear Pumps

Tandem Gear Pump, Group 2.6 + Group 2.6 (6~44cm³/rev.)

Hydraulic pumps

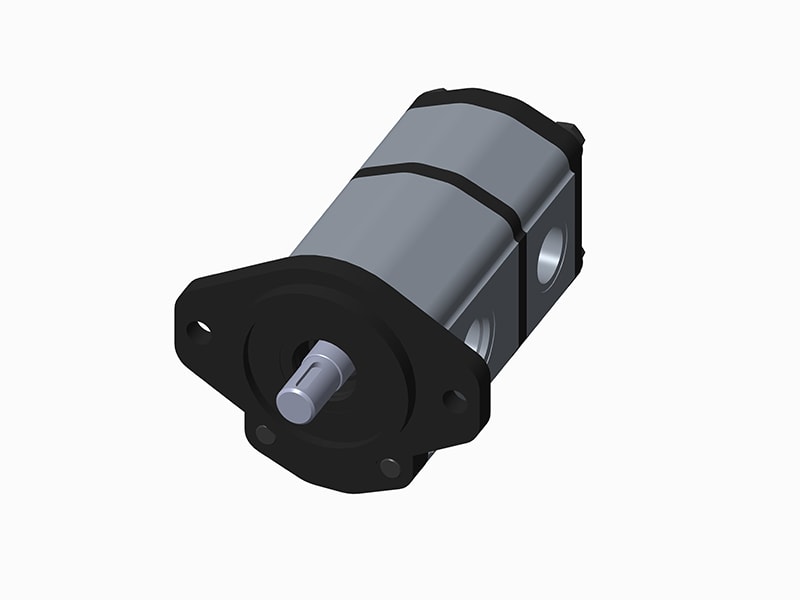

Tandem Gear Pump, Group 2.6 + Group 2.6
Technical Information
  • Displacement: 6~44cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S)
  • Min. speed: 500r/min
  • Max. speed: 2300r/min
  • Peak pressure: 170~250bar
Request a Quote

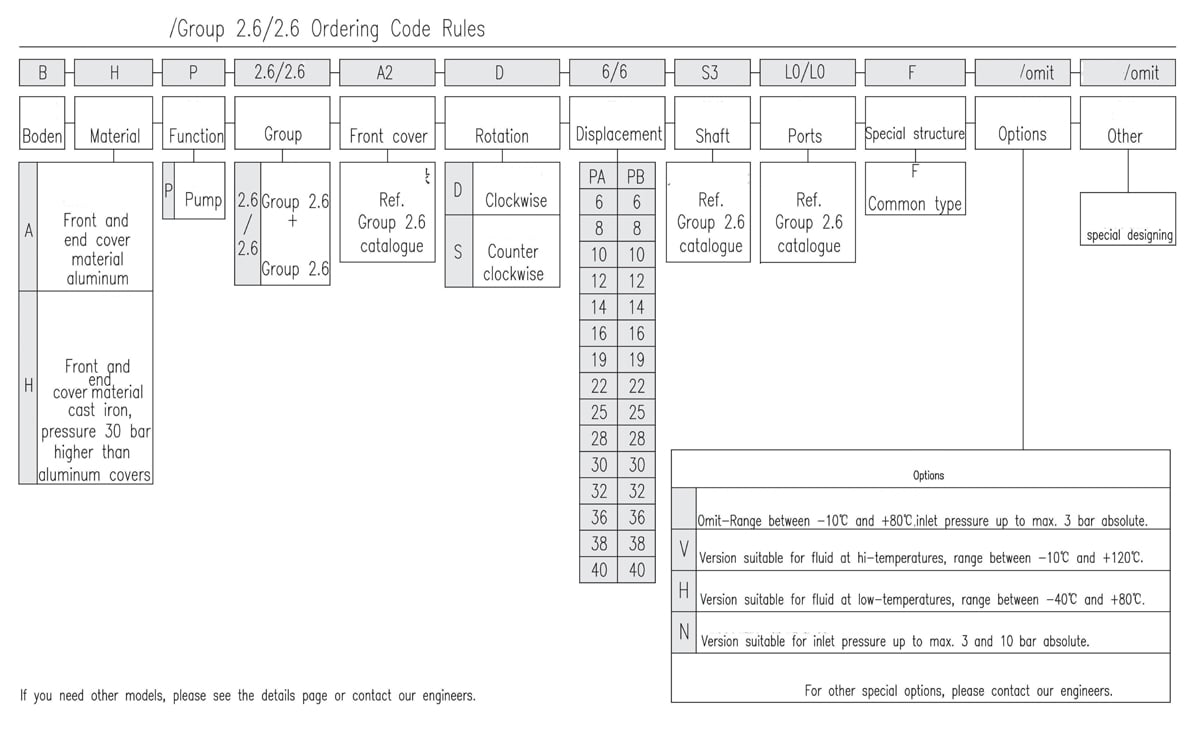

2.6/2.6 Tandem Gear Pump Ordering Code Rules
PDF download
2.6/2.6 Tandem Gear Pump Ordering Code Rules

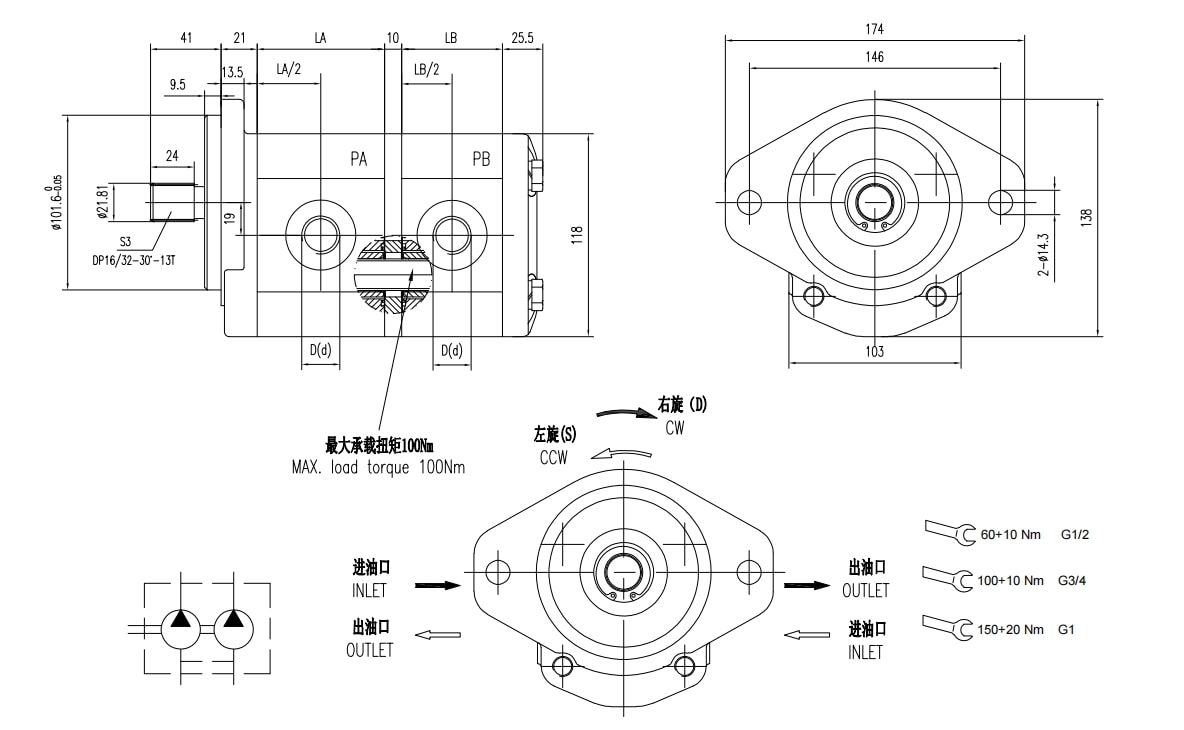

2.6/2.6 Tandem Gear Pump Standard Product Dimensions
Tandem Gear Pump, Group 2.6 + Group 2.6
Tandem Gear Pump, Group 2.6 + Group 2.6
Inquiry
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB LA LB PA D d PB D d
(cm³/rev.) (cm³/rev.) bar bar (r/min) (r/min) mm mm
6 6 250 250 2300 500 56.6 56.6 L0 G3/4 G1/2 L0 G3/4 G1/2
8 8 250 250 58.6 58.6 L0 G3/4 G1/2 L0 G3/4 G1/2
10 10 250 250 60.6 60.6 L0 G3/4 G1/2 L0 G3/4 G1/2
12 12 250 250 63.1 63.1 L0 G3/4 G1/2 L0 G3/4 G1/2
14 14 250 250 64.6 64.6 L0 G3/4 G1/2 L0 G3/4 G1/2
16 16 250 250 67.1 67.1 L0 G3/4 G1/2 L0 G3/4 G1/2
19 19 250 250 70.6 70.6 L0 G3/4 G1/2 L0 G3/4 G1/2
22 22 250 250 74.1 74.1 L0 G3/4 G1/2 L0 G3/4 G1/2
25 25 250 250 76.6 76.6 L1 G1 G3/4 L1 G1 G3/4
28 28 250 250 79.6 79.6 L1 G1 G3/4 L1 G1 G3/4
30 30 230 230 82.1 82.1 L1 G1 G3/4 L1 G1 G3/4
32 32 230 230 84.6 84.6 L1 G1 G3/4 L1 G1 G3/4
36 36 200 200 88.6 88.6 L1 G1 G3/4 L1 G1 G3/4
38 38 200 200 90.6 90.6 L1 G1 G3/4 L1 G1 G3/4
40 40 170 170 92.6 92.6 L1 G1 G3/4 L1 G1 G3/4
44 44 170 170 97.1 97.1 L1 G1 G3/4 L1 G1 G3/4
