Multiple Gear Pumps

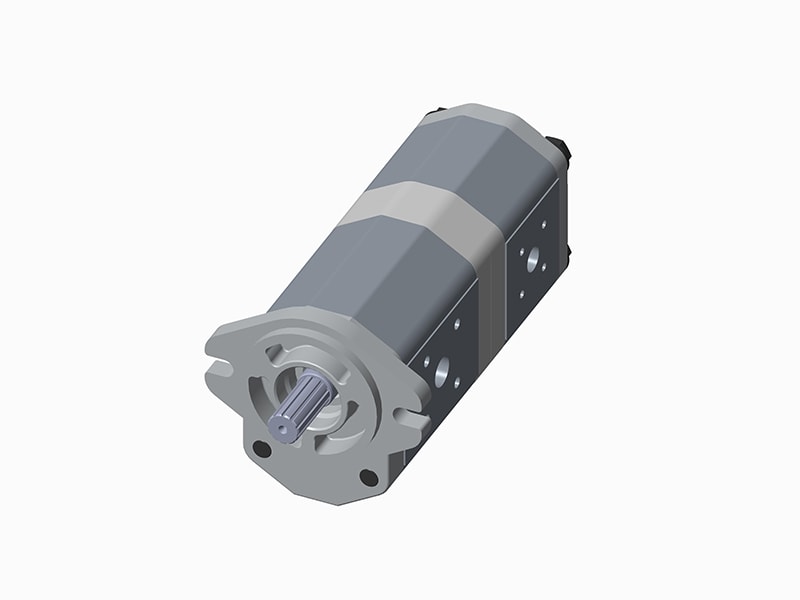

Tandem Gear Pump, Group 2.5 + Group 2.5 (10~45cm³/rev.)

Hydraulic pumps
Tandem Gear Pump, Group 2.5 + Group 2.5
Technical Information
  • Displacement: 10~45cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S)
  • Min. speed: 500r/min
  • Max. speed: 2300r/min
  • Peak pressure: 100~250bar
Request a Quote

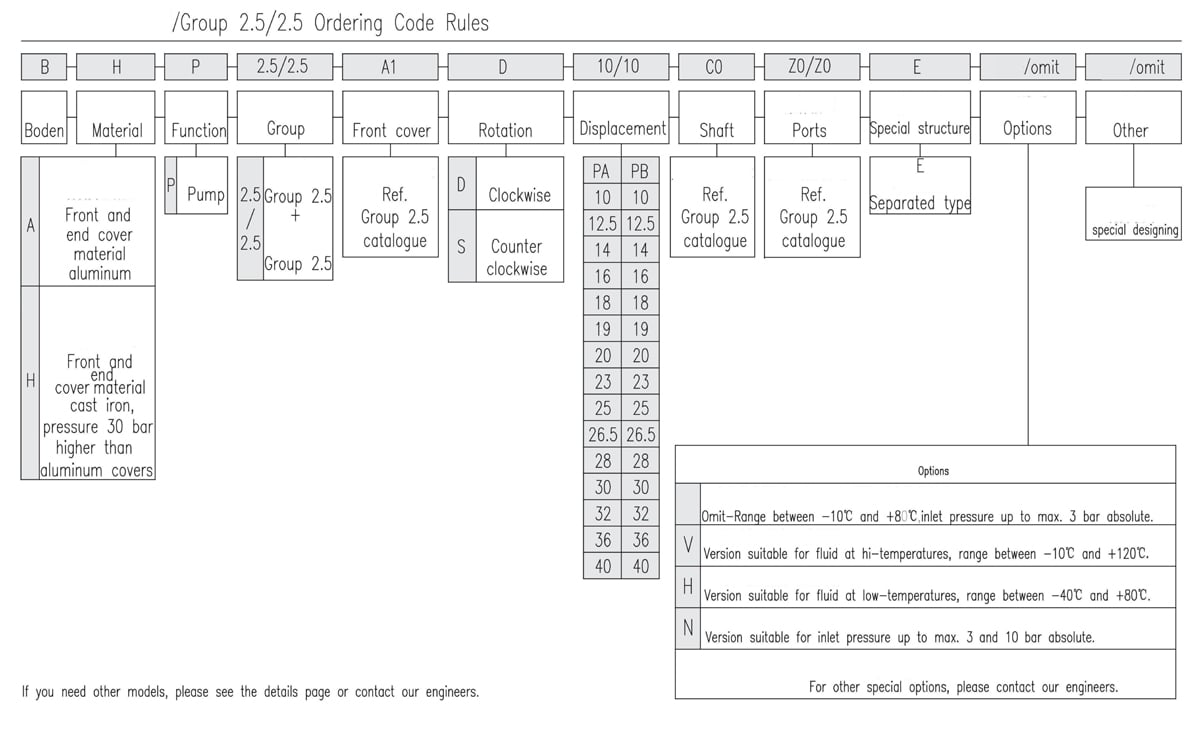

Group 2.5 + Group 2.5 Tandem Gear Pump Ordering Code Rules
PDF download
Group 2.5 + Group 2.5 Tandem Gear Pump Ordering Code Rules

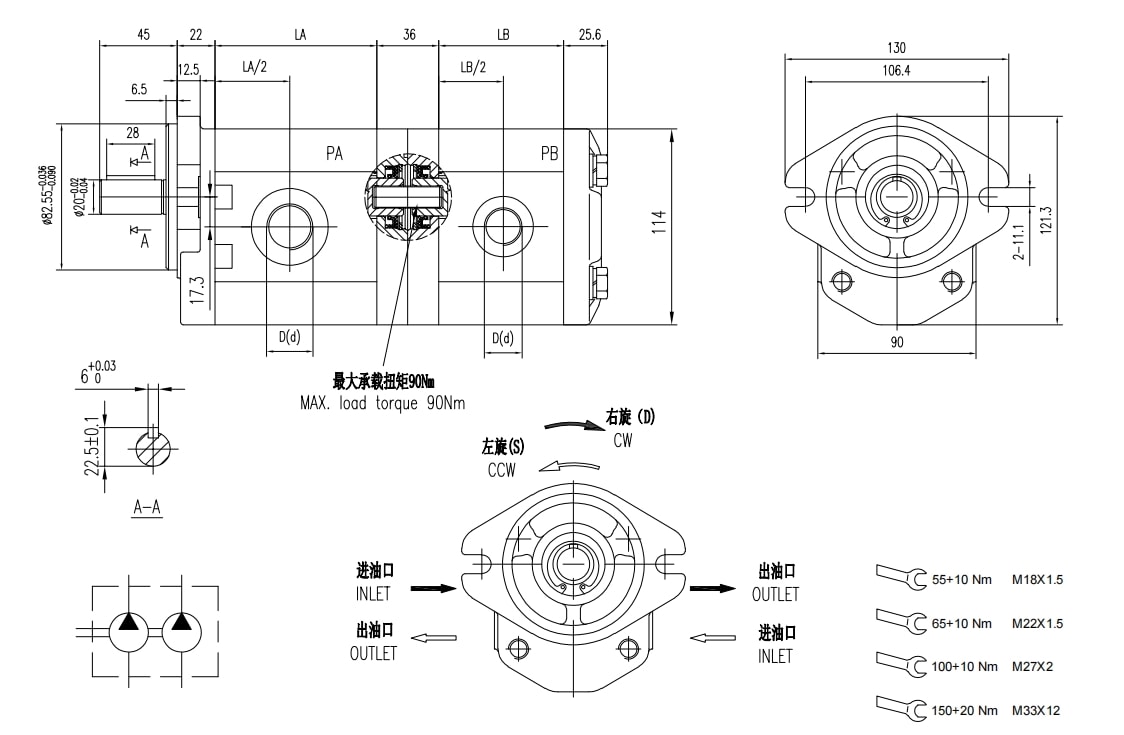

2.5/2.5 Tandem Gear Pump Standard Product Dimensions
Tandem Gear Pump, Group 2.5 + Group 2.5
Tandem Gear Pump, Group 2.5 + Group 2.5
Inquiry
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB LA LB PA D d PB D d
(cm³/rev.) (cm³/rev.) bar bar (r/min) (r/min) mm mm
10 10 250 250 2300 500 62.6 62.6 Z0 M22x1.5 M18x1.5 Z0 M22x1.5 M18x1.5
12.5 12.5 250 250 65.6 65.6 Z0 M22x1.5 M18x1.5 Z0 M22x1.5 M18x1.5
14 14 250 250 67.6 67.6 Z0 M22x1.5 M18x1.5 Z0 M22x1.5 M18x1.5
16 16 250 250 70.1 70.1 Z1 M27x2 M22x1.5 Z1 M27x2 M22x1.5
18 18 250 250 72.6 72.6 Z1 M27x2 M22x1.5 Z1 M27x2 M22x1.5
19 19 250 250 73.6 73.6 Z1 M27x2 M22x1.5 Z1 M27x2 M22x1.5
20 20 250 250 75.1 75.1 Z1 M27x2 M22x1.5 Z1 M27x2 M22x1.5
23 23 230 230 78.6 78.6 Z2 M33x2 M27x2 Z2 M33x2 M27x2
25 25 230 230 81.1 81.1 Z2 M33x2 M27x2 Z2 M33x2 M27x2
26.5 26.5 230 230 83.1 83.1 Z2 M33x2 M27x2 Z2 M33x2 M27x2
28 28 230 230 85.1 85.1 Z2 M33x2 M27x2 Z2 M33x2 M27x2
30 30 230 230 87.1 87.1 Z2 M33x2 M27x2 Z2 M33x2 M27x2
32 32 200 200 90.1 90.1 Z2 M33x2 M27x2 Z2 M33x2 M27x2
36 36 200 200 94.1 94.1 Z2 M33x2 M27x2 Z2 M33x2 M27x2
40 40 160 160 99.1 99.1 Z2 M33x2 M27x2 Z2 M33x2 M27x2
45 45 160 160 105.1 105.1 Z2 M33x2 M27x2 Z2 M33x2 M27x2
