Multiple Gear Pumps

Tandem Gear Pump, Group 3 + Group 3 (3~71cm³/rev.)

Tandem Gear Pump, Group 3 + Group 3
Tandem Gear Pump, Group 3 + Group 3 Tandem Gear Pump, Group 3 + Group 3
Technical Information
  • Displacement: 3~71cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S), reversible (R)
  • Min. speed: 600r/min
  • Max. speed: 2500r/min
  • Peak pressure: 170~285bar
Request a Quote

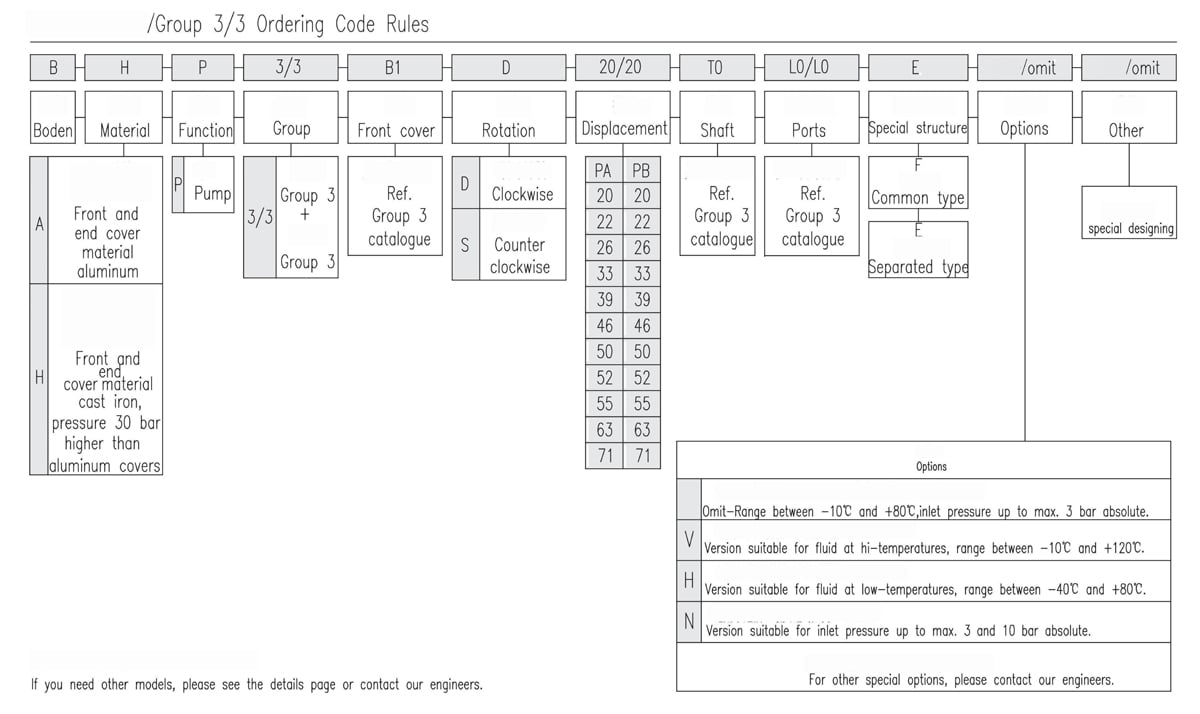

3/3 Tandem Gear Pump Ordering Code Rules
PDF download
3/3 Tandem Gear Pump Ordering Code Rules

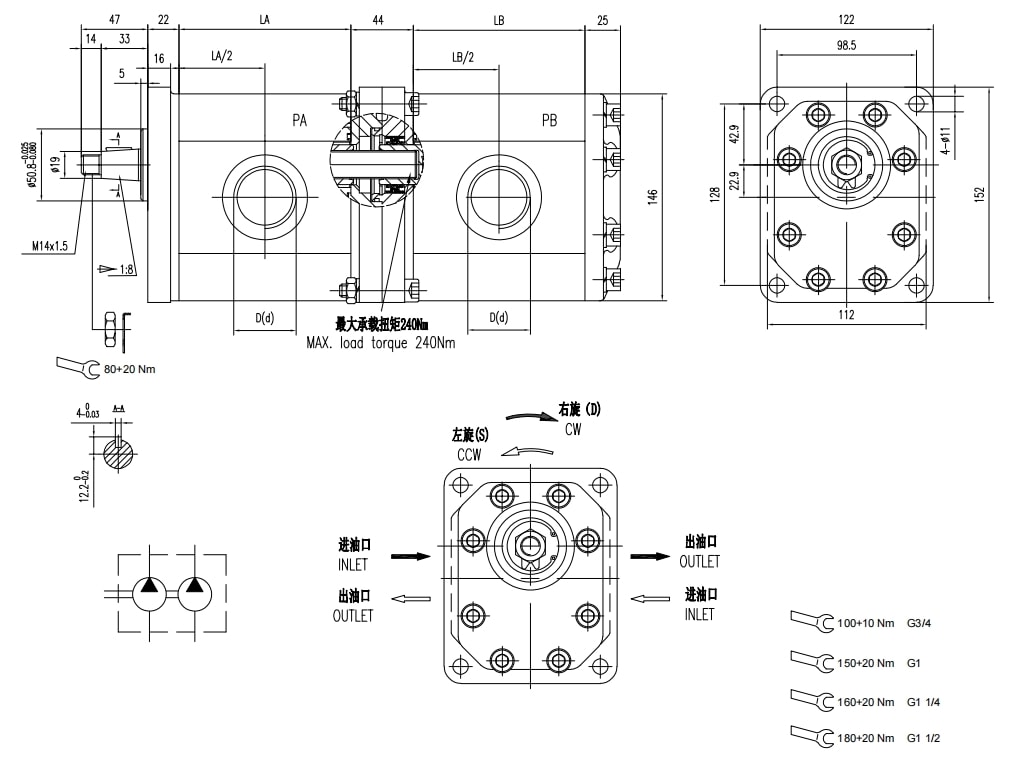

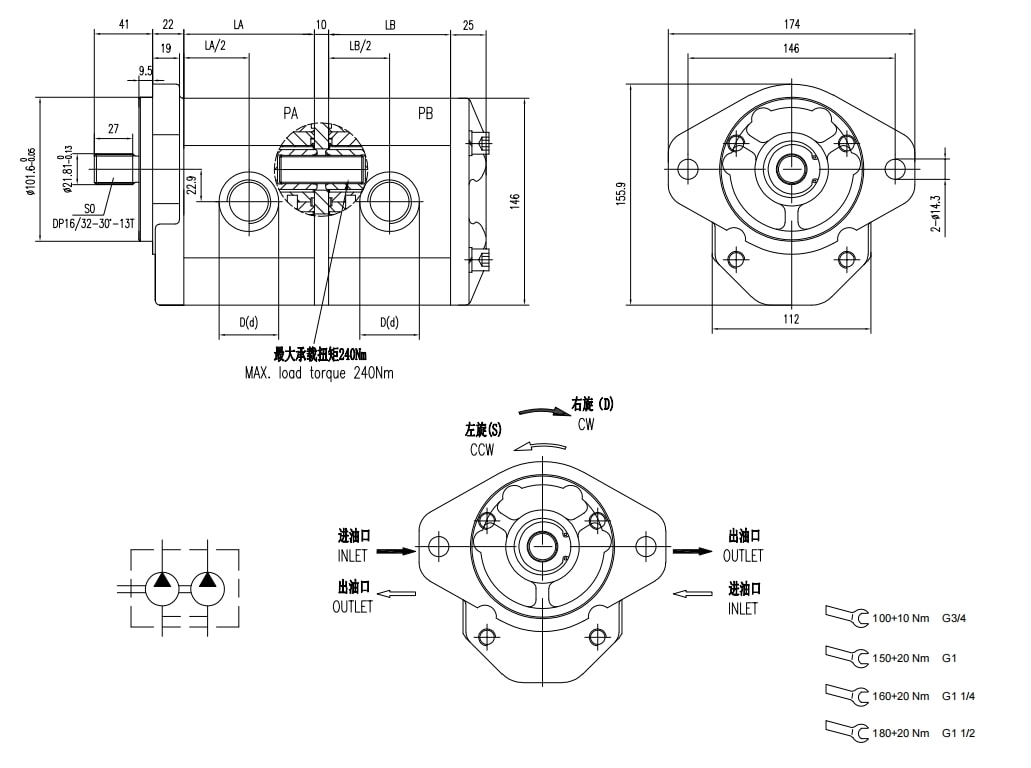

3/3 Tandem Gear Pump Standard Product Dimensions
Tandem Gear Pump, Group 3 + Group 3
Tandem Gear Pump, Group 3 + Group 3
Inquiry
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB LA LB PA D d PB D d
(cm³/rev.) (cm³/rev.) bar bar (r/min) (r/min) mm mm
20 20 250 250 2500 600 81.1 81.1 L0 G3/4 G3/4 L0 G3/4 G3/4
22 22 250 250 83.1 83.1 L0 G3/4 G3/4 L0 G3/4 G3/4
26 26 250 250 86.1 86.1 L1 G1 G3/4 L1 G1 G3/4
33 33 230 230 92.1 92.1 L1 G1 G3/4 L1 G1 G3/4
39 39 230 230 99.1 99.1 L1 G1 G3/4 L1 G1 G3/4
46 46 230 230 105.1 105.1 L2 G11/4 G1 L2 G11/4 G1
50 50 220 220 109.1 109.1 L2 G11/4 G1 L2 G11/4 G1
52 52 220 220 111.1 111.1 L2 G11/4 G1 L2 G11/4 G1
55 55 200 200 113.1 113.1 L2 G11/4 G1 L2 G11/4 G1
63 63 200 200 121.1 121.1 L2 G11/4 G1 L2 G11/4 G1
71 71 180 180 128.1 128.1 L3 G11/2 G11/4 L3 G11/2 G11/4
Tandem Gear Pump, Group 3 + Group 3
Tandem Gear Pump, Group 3 + Group 3
Inquiry
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB LA LB PA D d PB D d
(cm³/rev.) (cm³/rev.) bar bar (r/min) (r/min) mm mm
20 20 250 250 2500 600 81.1 81.1 L0 G3/4 G3/4 L0 G3/4 G3/4
22 22 250 250 83.1 83.1 L0 G3/4 G3/4 L0 G3/4 G3/4
26 26 250 250 86.1 86.1 L1 G1 G3/4 L1 G1 G3/4
33 33 230 230 92.1 92.1 L1 G1 G3/4 L1 G1 G3/4
39 39 230 230 99.1 99.1 L1 G1 G3/4 L1 G1 G3/4
46 46 230 230 105.1 105.1 L2 G11/4 G1 L2 G11/4 G1
50 50 220 220 109.1 109.1 L2 G11/4 G1 L2 G11/4 G1
52 52 220 220 111.1 111.1 L2 G11/4 G1 L2 G11/4 G1
55 55 200 200 113.1 113.1 L2 G11/4 G1 L2 G11/4 G1
63 63 200 200 121.1 121.1 L2 G11/4 G1 L2 G11/4 G1
71 71 180 180 128.1 128.1 L3 G11/2 G11/4 L3 G11/2 G11/4
