Multiple Gear Pumps

Tandem Gear Pump, Group 3A + Group 2.6A (10~63cm³/rev.)

Hydraulic pumps

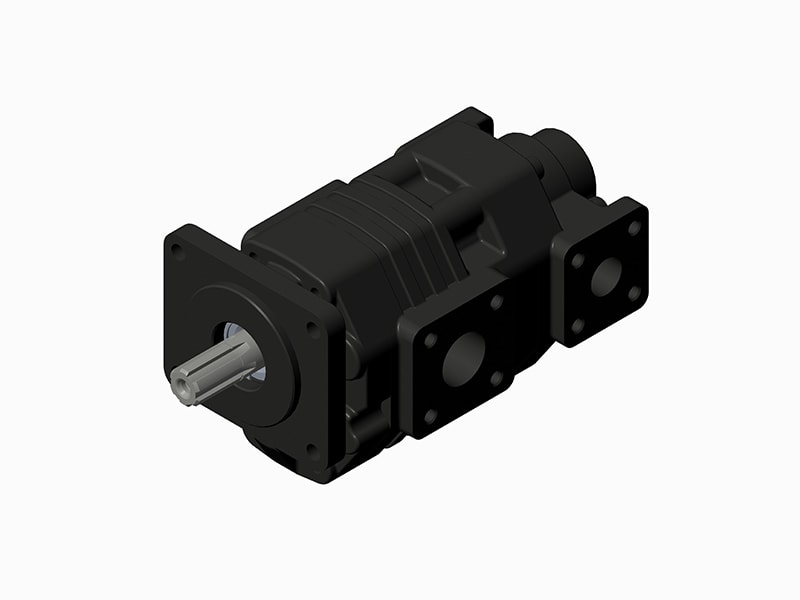

Tandem Gear Pump, Group 3A + Group 2.6A
Technical Information
  • Displacement: 10~63cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S), reversible (R)
  • Min. speed: 800r/min
  • Max. speed: 2500r/min
  • Peak pressure: 250bar
Request a Quote

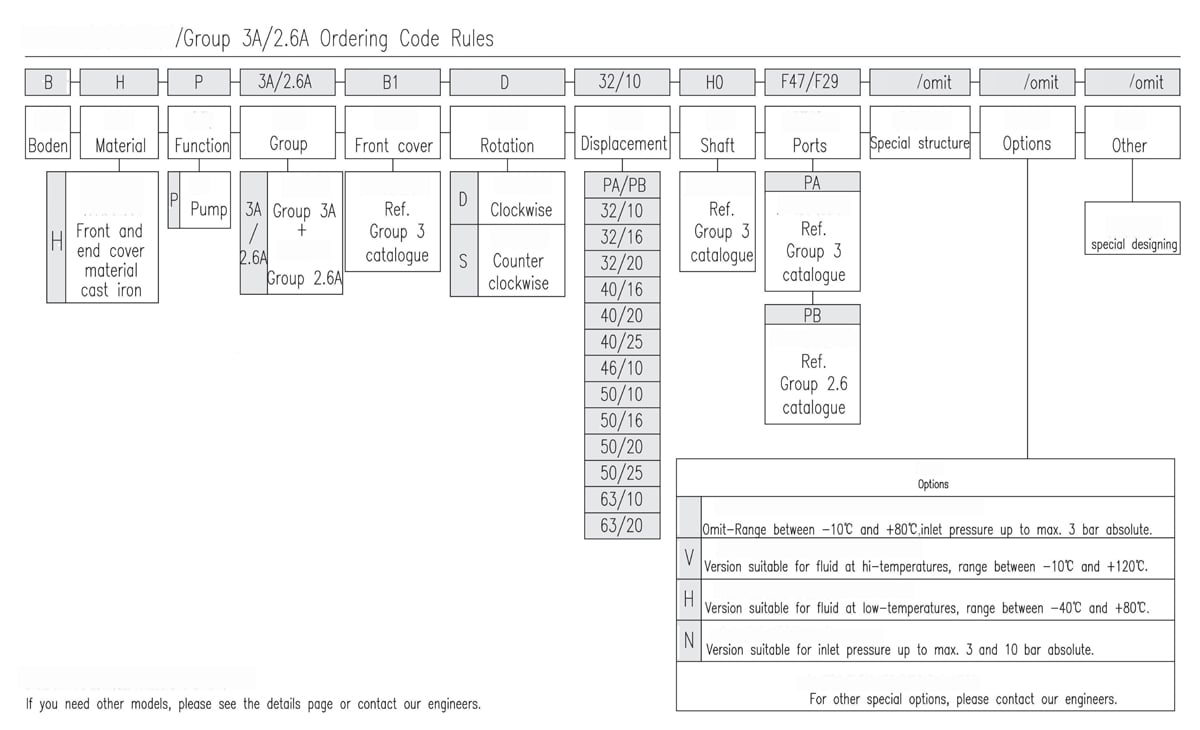

3A/2.6A Tandem Gear Pump Ordering Code Rules
PDF download
3A/2.6A Tandem Gear Pump Ordering Code Rules

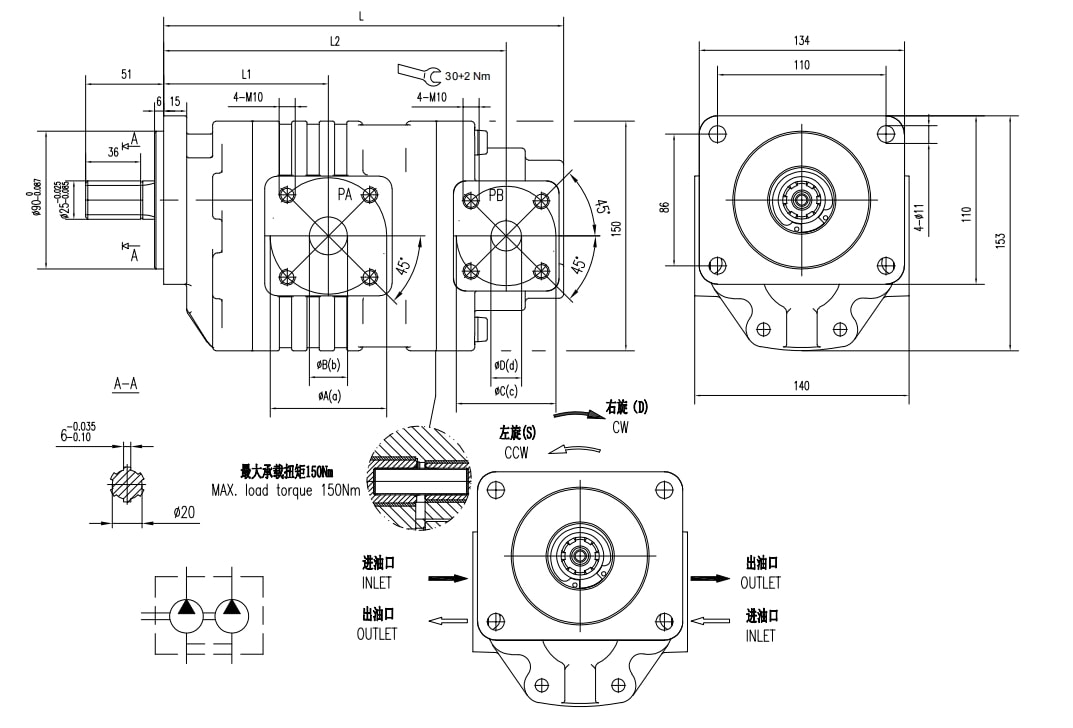

3A/2.6A Tandem Gear Pump Standard Product Dimensions
Tandem Gear Pump, Group 3A + Group 2.6A
Tandem Gear Pump, Group 3A + Group 2.6A
Inquiry
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB L L1 L2 PA A B a b PB C D c d
(cm³/rev.) bar bar (r/min) (r/min) mm mm mm mm mm mm mm mm mm mm mm
32/10 250 250 800 229.5 98 192 F47 65 30 65 20 F29 65 25 65 20
250 250 237 98 199.5 F47 65 30 65 20 F29 65 25 65 20
32/20 250 242 98 204.5 F47 65 30 65 20 F29 65 25 65 20
40/16 250 250 242 100.5 204.5 F2 76 35 76 25 F29 65 25 65 20
40/20 250 250 247 100.5 209.5 F2 76 35 76 25 F29 65 25 65 20
40/25 250 250 253.5 100.5 216 F2 76 35 76 25 F29 65 25 65 20
250 250 238.5 102.5 201 F2 76 35 76 25 F29 65 25 65 20
50/10 250 250 240.5 103.5 203 F2 76 35 76 25 F29 65 25 65 20
50/16 250 250 248 103.5 210.5 F2 76 35 76 25 F29 65 25 65 20
50/20 250 250 253 103.5 215.5 F2 76 35 76 25 F29 65 25 65 20
50/25 250 250 258.5 103.5 222 F2 76 35 76 25 F29 65 25 65 20
63/10 250 250 248.5 107.5 211 F2 76 35 76 25 F29 65 25 65 20
63/20 250 250 261 107.5 223.5 F2 76 35 76 25 F29 65 25 65 20
